Renewable Energy Valve Solutions — Isolation, Regulation & Equipment Protection

No. “Renewable energy” can include water, steam, geothermal brine, wet biogas, hydrogen, heat-transfer fluid and other services with very different selection requirements. Each valve should be reviewed against the actual medium, phase, pressure-temperature range, pressure differential, operating cycle, end connection, actuation and required document scope before the configuration is confirmed.

Yes. Water feed, cooling-water and general utility lines should not be grouped automatically with direct hydrogen or oxygen service. For direct gas service, provide the gas phase, purity, pressure, temperature, leakage requirement, material scope, sealing requirements and applicable project standard so the technical review can be completed on the correct basis.

Provide the valve duty, line size, pressure class, end connection, gas composition, hydrogen sulfide content, moisture or condensate conditions, operating pressure and temperature, operation method, quantity and documentation requirements. If available, include the P&ID, valve schedule, datasheet, MTO or gas-treatment process information.

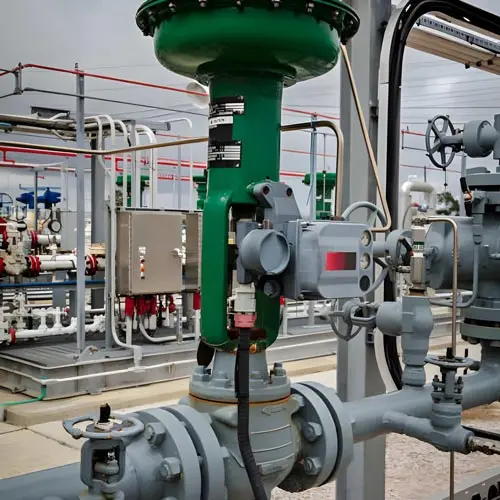

State whether the line carries steam, brine or two-phase flow, then provide the known chemistry and solids information: silica, chlorides, sand, particle loading, pressure, temperature, velocity and expected operating cycle. These inputs are needed to review scaling, erosion, corrosion, operating torque and the practical valve configuration for the defined service.

Confirm valve size, water flow, available head, differential pressure, required closing time, normal and emergency operating sequence, available power or hydraulic supply, fail position and any control-system interface. The valve and actuator should be reviewed together because closing behaviour, torque and site operating requirements are connected.

No. A high temperature rating alone does not confirm suitability for a particular molten-salt or thermal-storage duty. Provide the exact fluid, temperature range, thermal cycle, pressure, pressure differential, heat-tracing requirements, valve function and project specification. The technical basis must be reviewed before a valve configuration is proposed.

Yes. Send the available P&ID, MTO, valve schedule, datasheets or technical specification. zpvevlave can review the stated valve type, pressure class, materials, end connections, actuation and documentation requirements, then identify missing parameters or service conditions that should be confirmed before the configuration and quotation are prepared.

Agree the document and inspection scope during technical review, before the purchase order is released. Depending on the confirmed project requirements, the package may include datasheets, drawings, material information, inspection plans and pressure-test records. Any witness, hold-point or third-party documentation requirement should also be identified at this stage.
